Compact Air Handling Units

Counter Flow
Horizontal

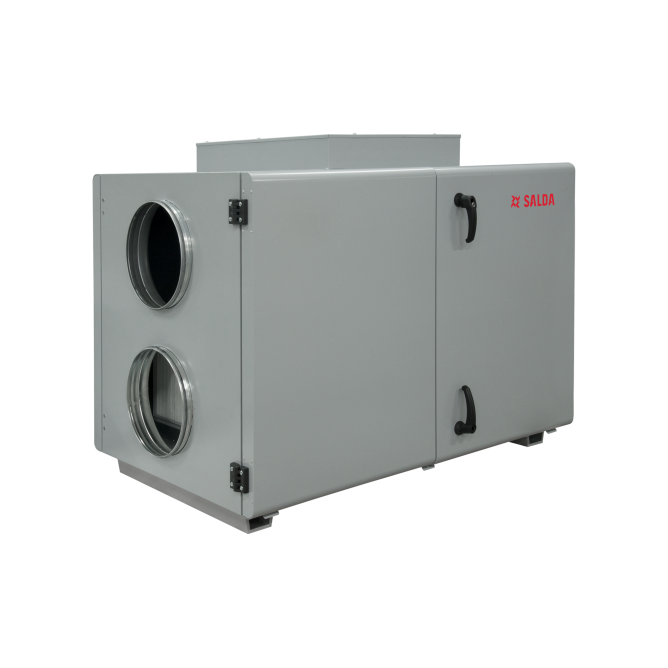

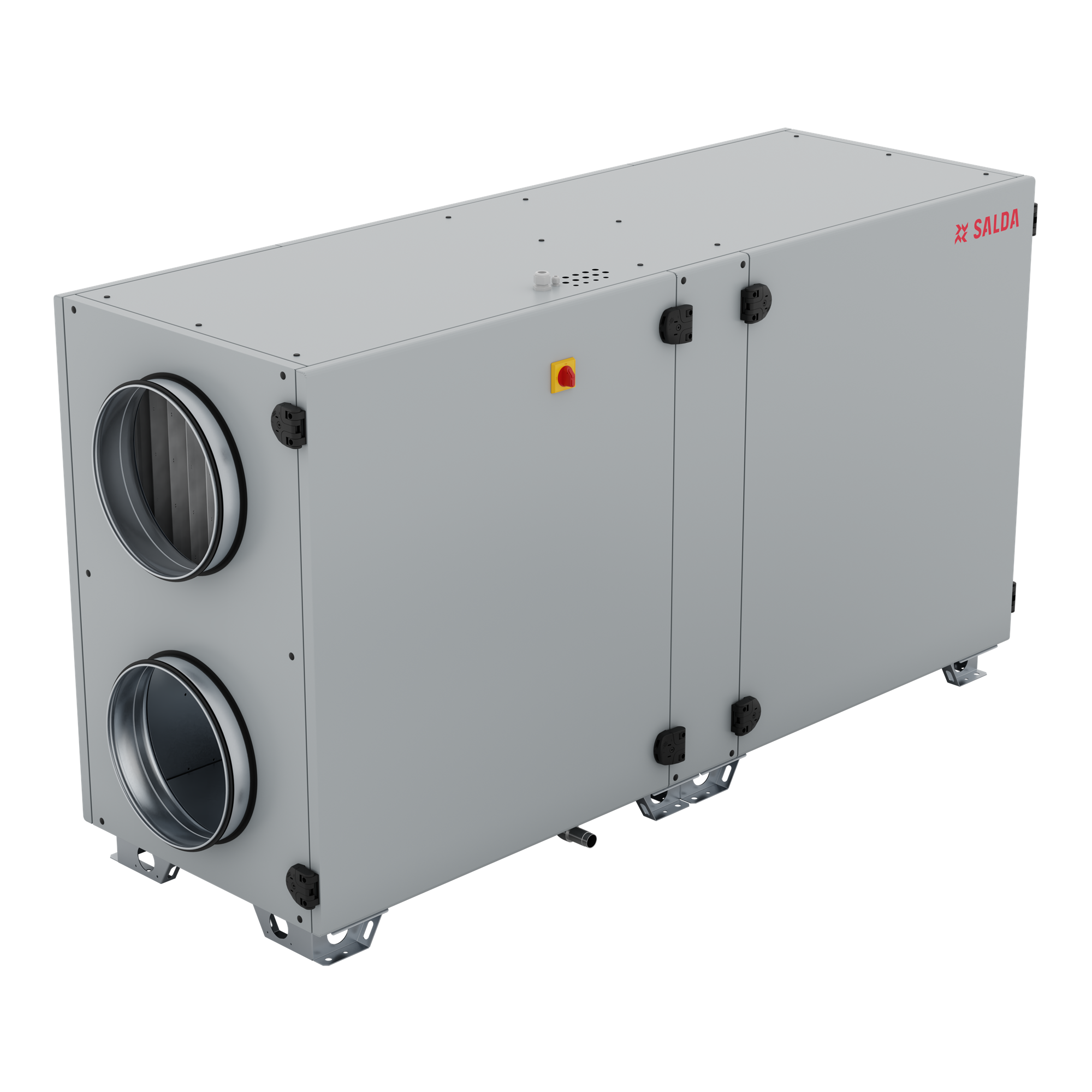

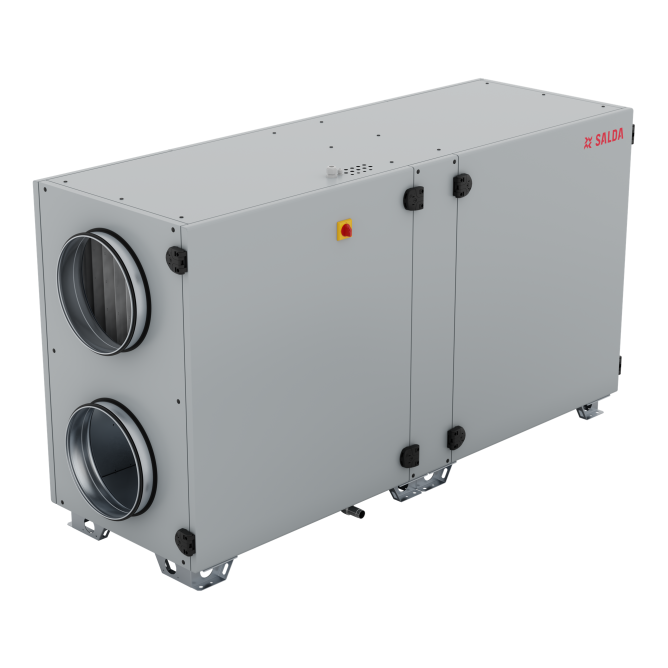

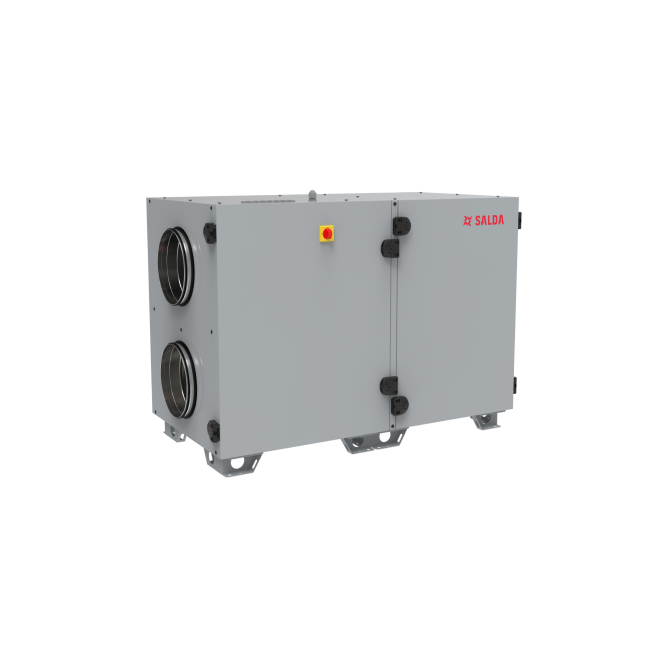

AmberAir Compact S-CX H

AmberAir Compact S-CX H is Eurovent certified range, designed for ventilation of public, commercial, or industrial premises. Available for up to 9000m3/h airflow.

Equipped with Counter-flow heat exchanger and optional water or electric heaters, these units reach great efficiency and airtight construction minimizes external and internal leakages. High internal airtightness L1(M) prevents odors from extracted air to get into the supply air. New type control of by-pass increases heat exchanger defrosting efficiency, thus minimizing energy consumption at winter allowing smooth operation until –23C outdoor temperature without pre-heater if appropriate water after-heater is selected.

Improved casing with high class thermal insulation T2/TB2. Ergonomic handles can be removed to transport though narrow doors.

Automatics integrated inside the casing for convenient servicing of outdoor units. No need to dissemble roof for maintenance.

More

AmberAir Compact RIS H EKO 3.0

AmberAir Compact RIS H EKO 3.0 is a range of Eurovent certified heat recovery units with high-efficiency counter-flow heat exchangers and vertical duct connections. Units are designed for placement on the floor. Due to vertical ducting, the units are suitable for installation in various premises (basements, boiler rooms, etc) and it is designed for up to 3500m3/h.

AmberAir Compact RIS H EKO 3.0 units have high overall energy savings due to the highly efficient heat recovery (up to 90%), quiet and economical EC fans, effective low-pressure-drop filters and top-level of air tightness.

The external preheater is required for operation if the outdoor air temperature is below -2C.

All the AmberAir Compact RIS H EKO 3.0 units are fully equipped with automatic controls as well as humidity sensor. Optional external sensors for CO2 and pressure will help to automatically control your climate.

More
Vertical

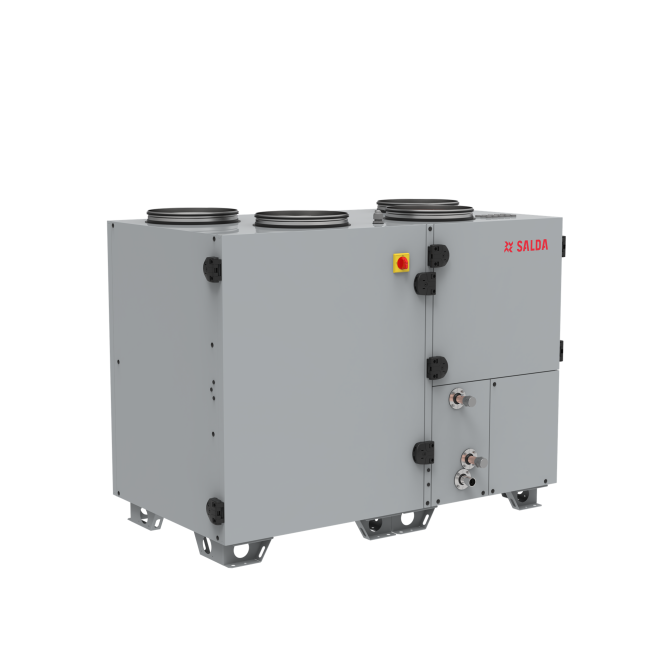

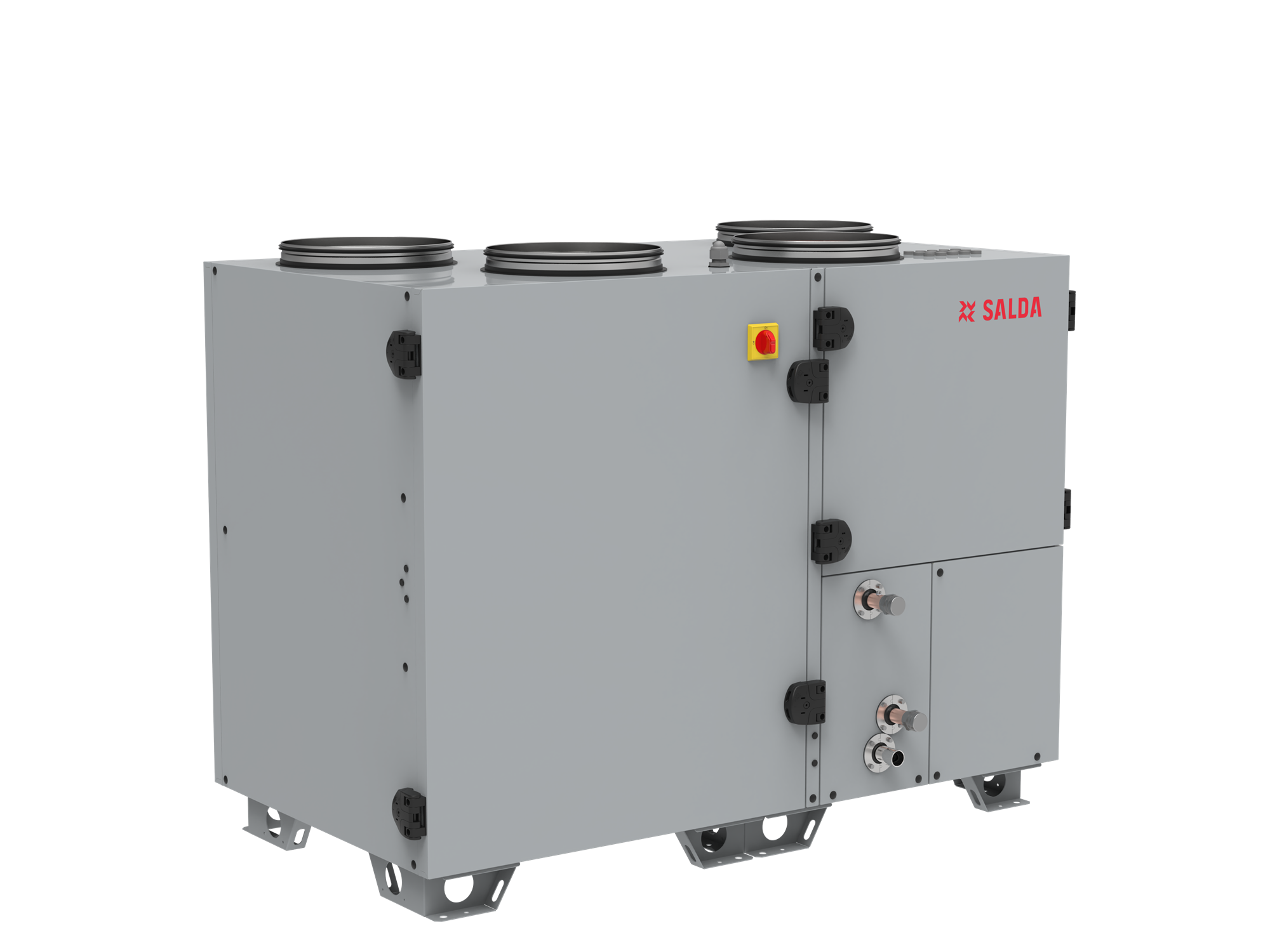

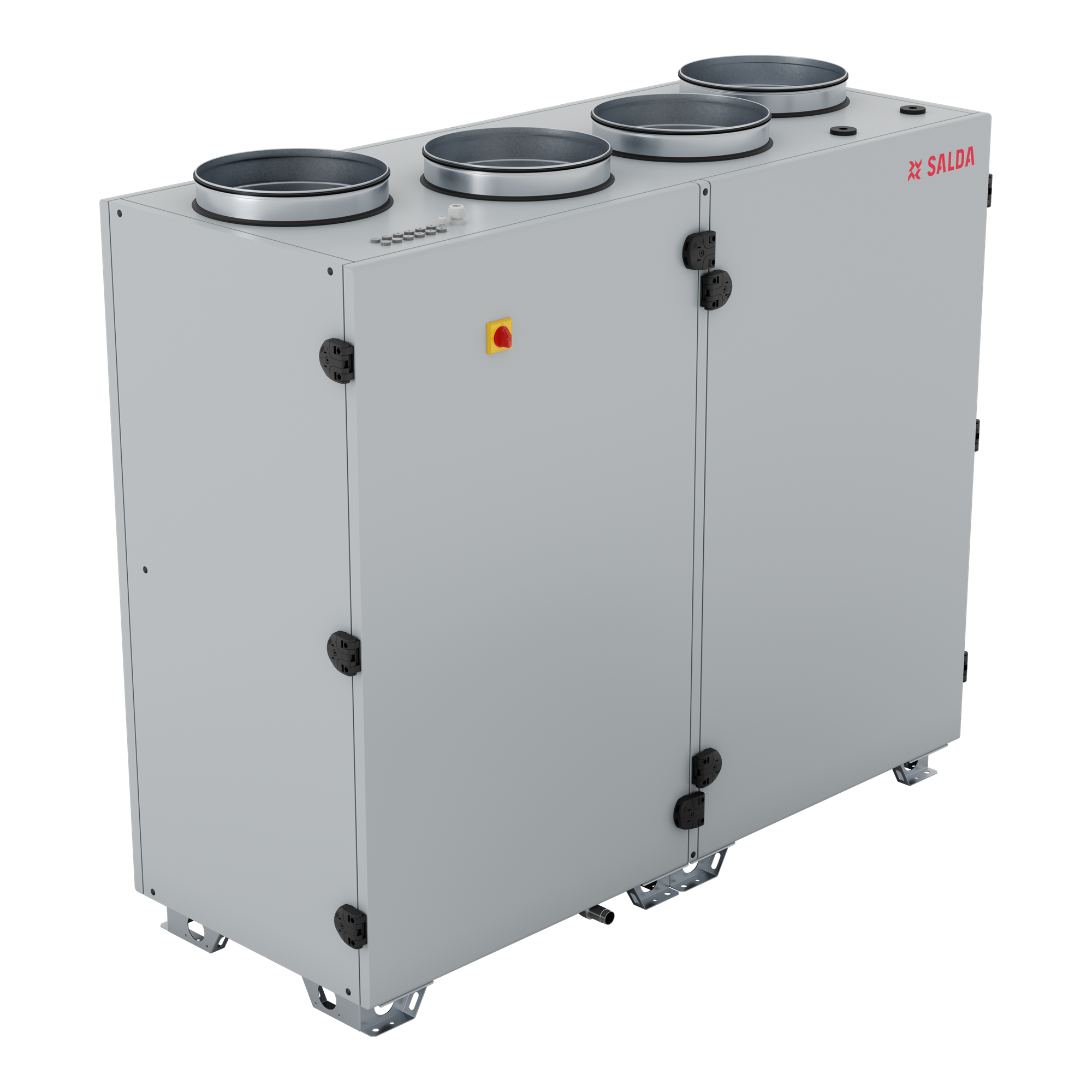

AmberAir Compact S-CX V

AmberAir Compact S-CX V is Eurovent certified range, designed for ventilation of public, commercial, or industrial premises. Available for up to 5000m3/h airflow.

Equipped with Counter-flow heat exchanger and optional water or electric heaters, these units reach great efficiency and airtight construction minimizes external and internal leakages. High internal airtightness L1(M) prevents odors from extracted air to get into the supply air. New type control of by-pass increases heat exchanger defrosting efficiency, thus minimizing energy consumption at winter allowing smooth operation until –23C outdoor temperature without pre-heater.

Improved casing with high class thermal insulation T2/TB2. Ergonomic handles can be removed to transport though narrow doors.

Automatics integrated inside the casing for convenient access.

More

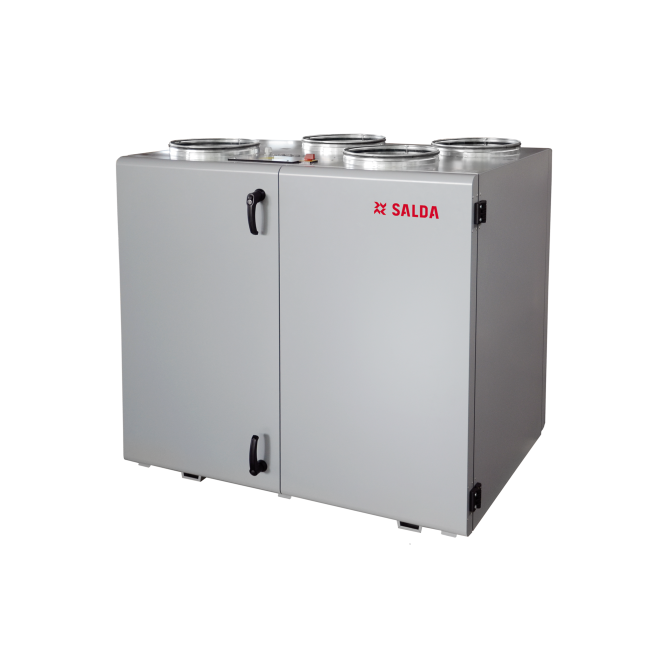

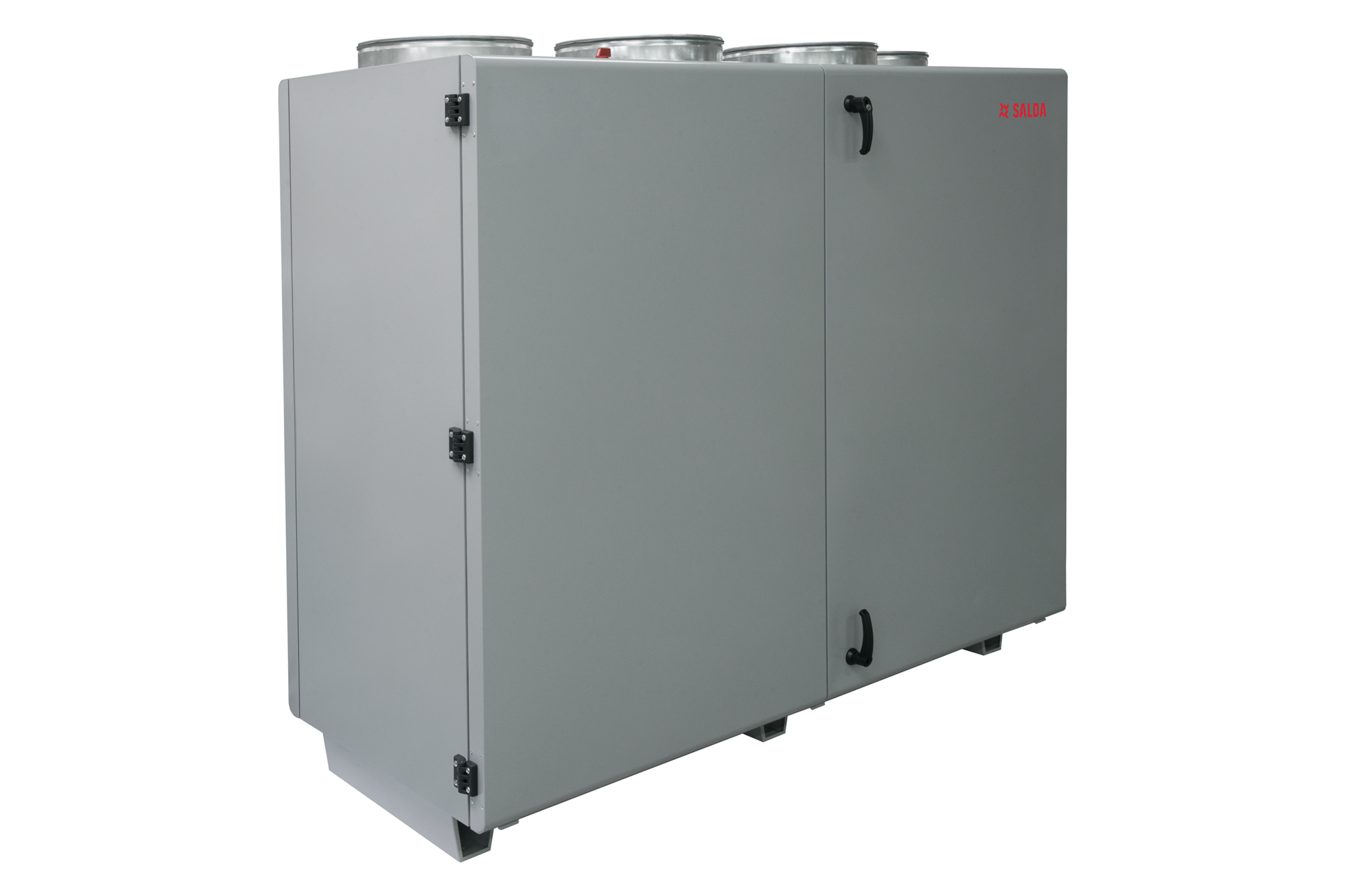

AmberAir Compact RIS V EKO 3.0

AmberAir Compact RIS V EKO 3.0 is a range of Eurovent certified heat recovery units with high-efficiency counter-flow heat exchangers and vertical duct connections. Units are designed for placement on the floor. Due to vertical ducting, the units are suitable for installation in various premises (basements, boiler rooms, etc) and it is designed for up to 2100m3/h.

AmberAir Compact RIS V EKO 3.0 units have high overall energy savings due to the highly efficient heat recovery (up to 90%), quiet and economical EC fans, effective low-pressure-drop filters and top-level of air tightness.

The external preheater is required for operation if the outdoor air temperature is below -2C.

All the AmberAir Compact RIS V EKO 3.0 units are fully equipped with automatic controls as well as humidity sensor. Optional external sensors for CO2 and pressure will help to automatically control your climate.

More
Ceiling

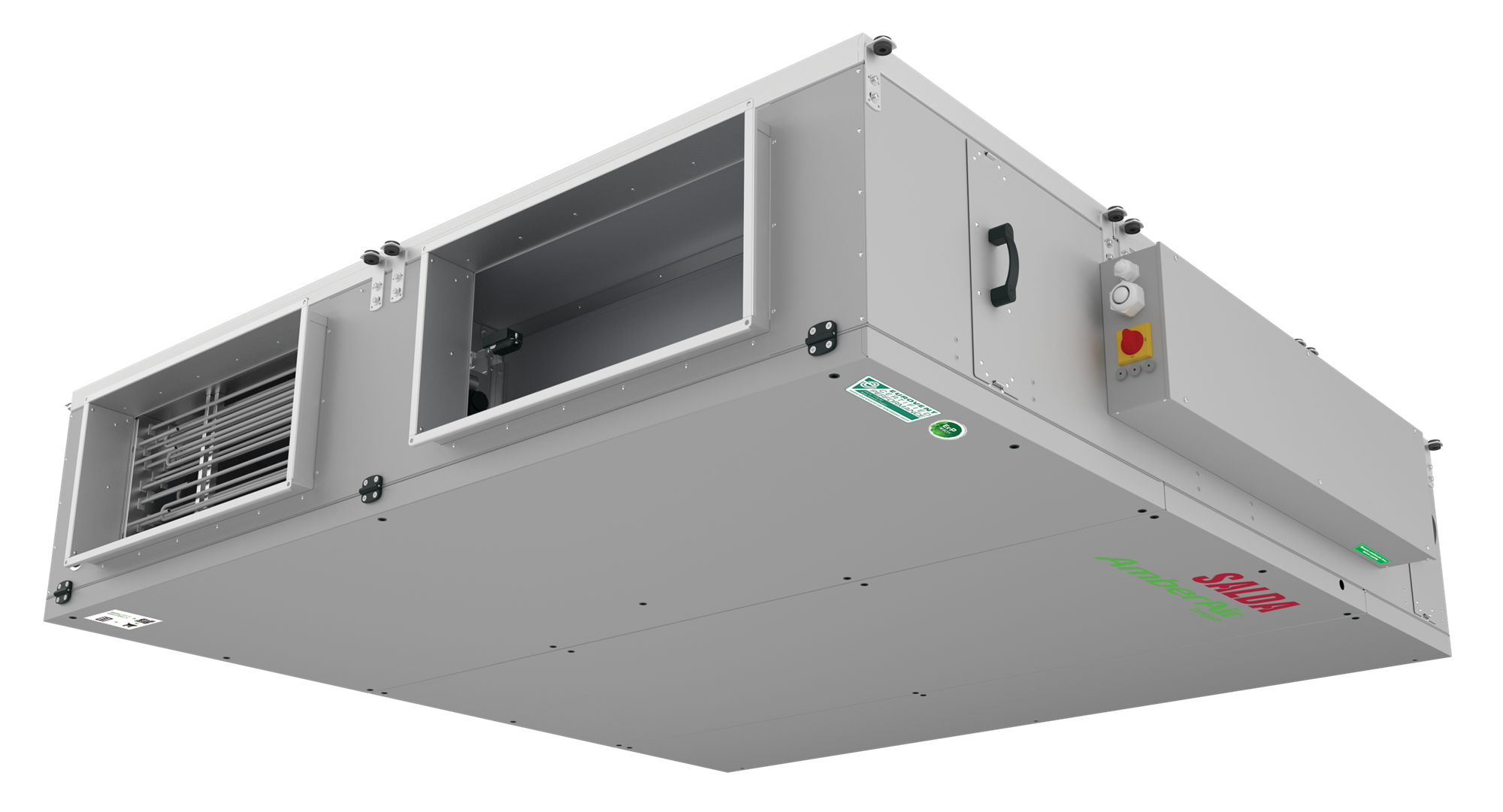

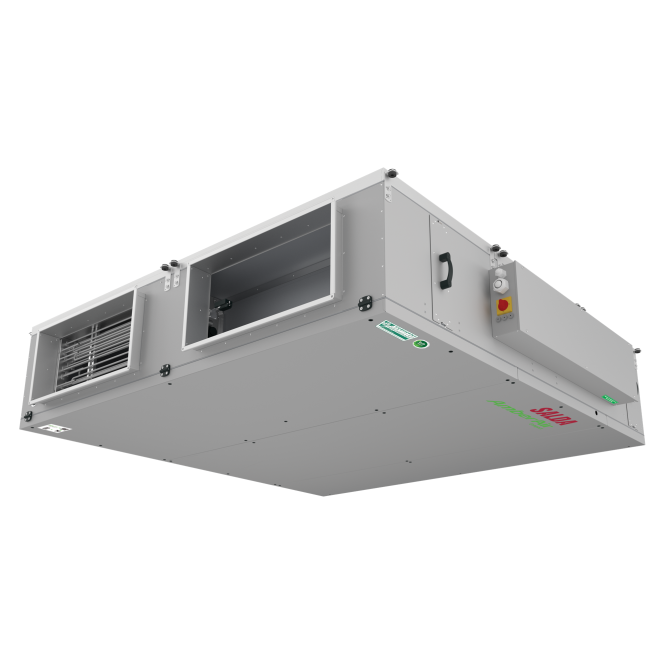

AmberAir Compact CXP

AmberAir Compact CXP is designed for ventilation of public, commercial, or industrial premises. The unit can be installed under the ceiling, on the floor (with optional legs), or horizontally (with optional legs). Variations with 50 mm cover insulation can be installed outdoors under the roof (accessory).

The counterflow heat exchanger reaches 81% of the heat recovery rate according to EN 308 standard.

Airtight construction minimizes external and internal leakages. High internal airtightness prevents odors from extracted air to get into the supply air. High thermal bringing class prevents condensation formation on sidewalls, thus preventing corrosion and ensuring hygienic performance.

The HRVU can be controlled by an external control panel (accessory), via the internet (accessory required), or via mobile app (accessory required). The timer is integrated into the unit's control board for energy-friendly control. Integrated pressure switches allow controlling airflow by air pressure (contact air pressure or constant airflow modes). Integrated extract air relative humidity sensor allows to lower RH inside the premises (RH reduction function) or to control humidity extraction from them (dryness protection function). External CO2 sensors can be connected for automatic CO2 control.

More

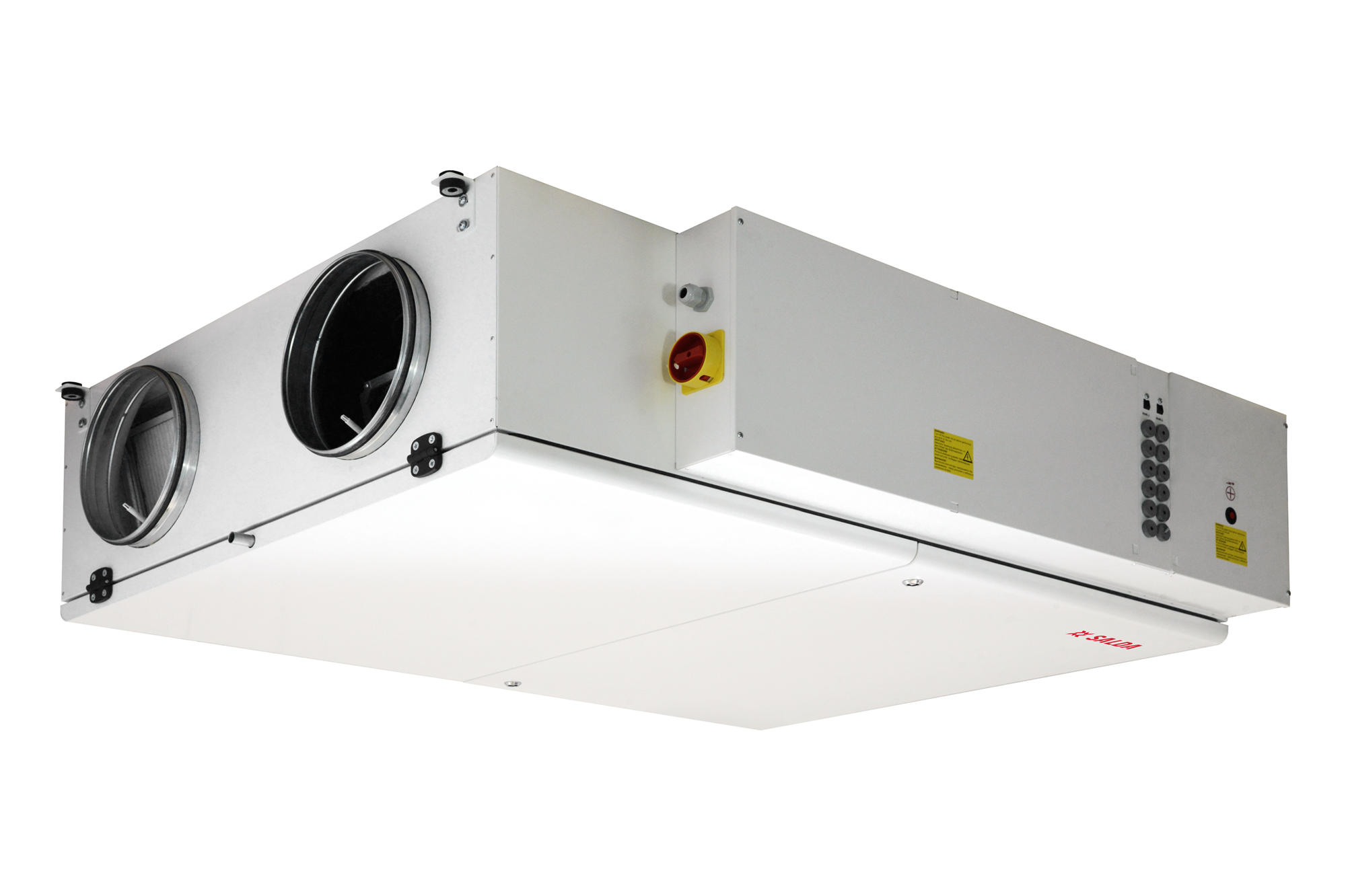

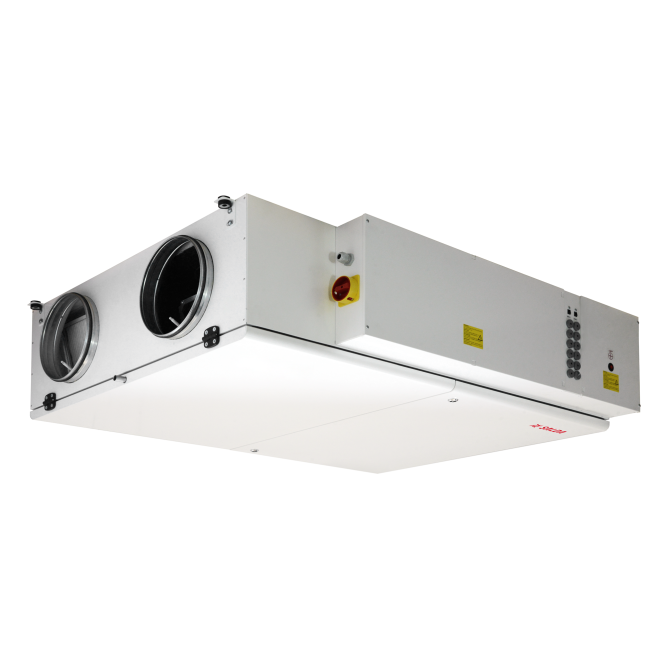

AmberAir Compact RIS P EKO 3.0

AmberAir Compact RIS P EKO 3.0 is a range of Eurovent certified heat recovery units with high-efficiency counter-flow heat exchangers and low height. The units are designed for mounting under ceilings in order to save space. There are 3 sizes designed for up to 2500m3/h with separate heaters available for different climate zones.

AmberAir Compact RIS P EKO 3.0 units have high overall energy savings due to the highly efficient heat recovery (up to 90%), quiet and economical EC fans, effective low-pressure-drop filters and top-level of air tightness.

The external preheater is required for operation if the outdoor air temperature is below -2C.

All the AmberAir Compact RIS P EKO 3.0 units are fully equipped with automatic controls as well as humidity sensor. Optional external sensors for CO2 and pressure will help to automatically control your climate.

More
Rotary
Horizontal

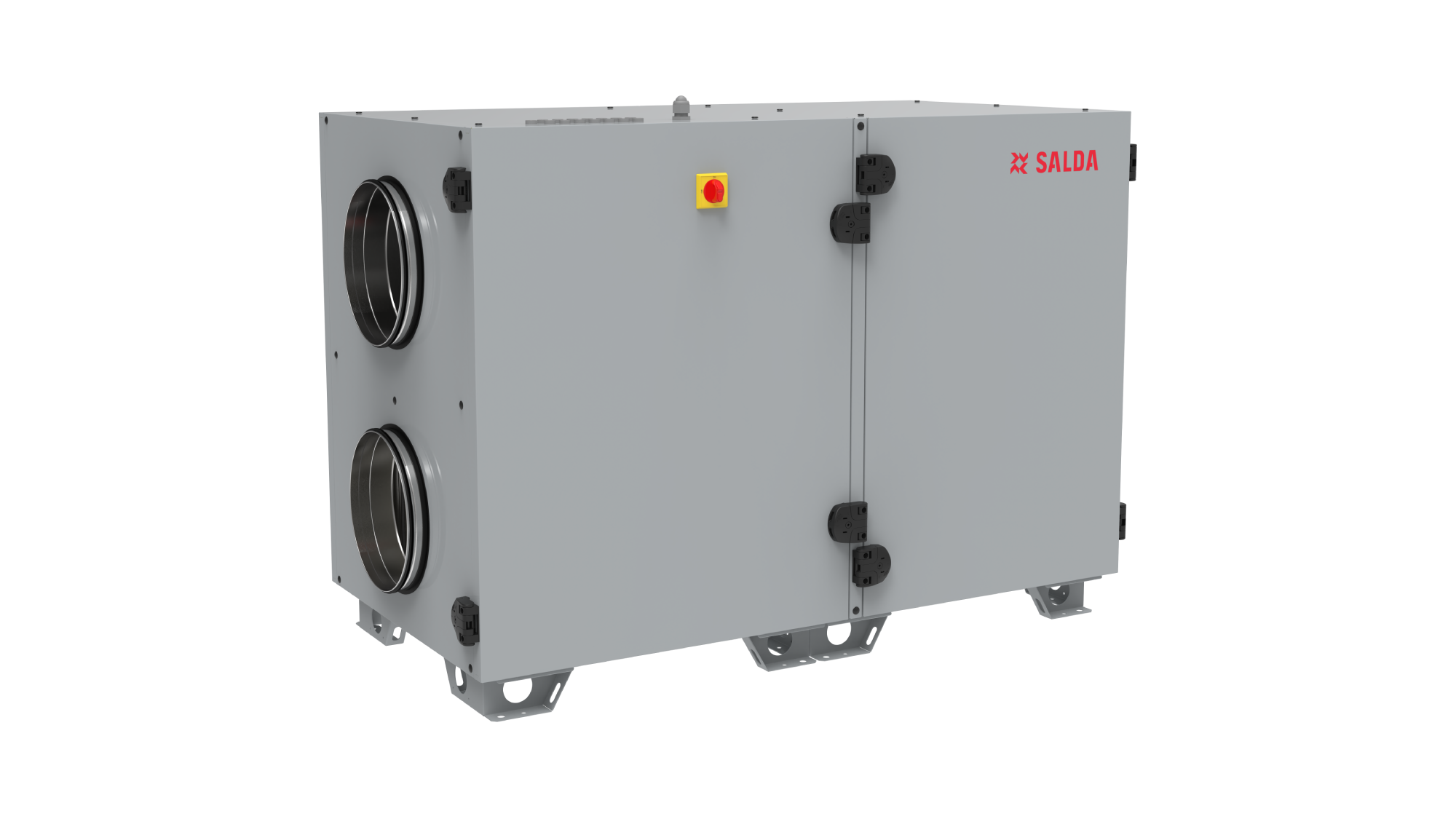

AmberAir Compact S-R H

AmberAir Compact S-R H is Eurovent certified range, designed for ventilation of public, commercial, or industrial premises. Available for up to 9000m3/h airflow.

Equipped with Rotary heat exchanger and optional water heater/cooler, electric heater or DX coil, these units reach great efficiency and airtight construction minimizes external and internal leakages. High internal airtightness L1(M) prevents odors from extracted air to get into the supply air.

Improved casing with high class thermal insulation T2/TB2. Ergonomic handles can be removed to transport though narrow doors.

Automatics integrated inside the casing for convenient servicing of outdoor units. No need to dissemble roof for maintenance.

More

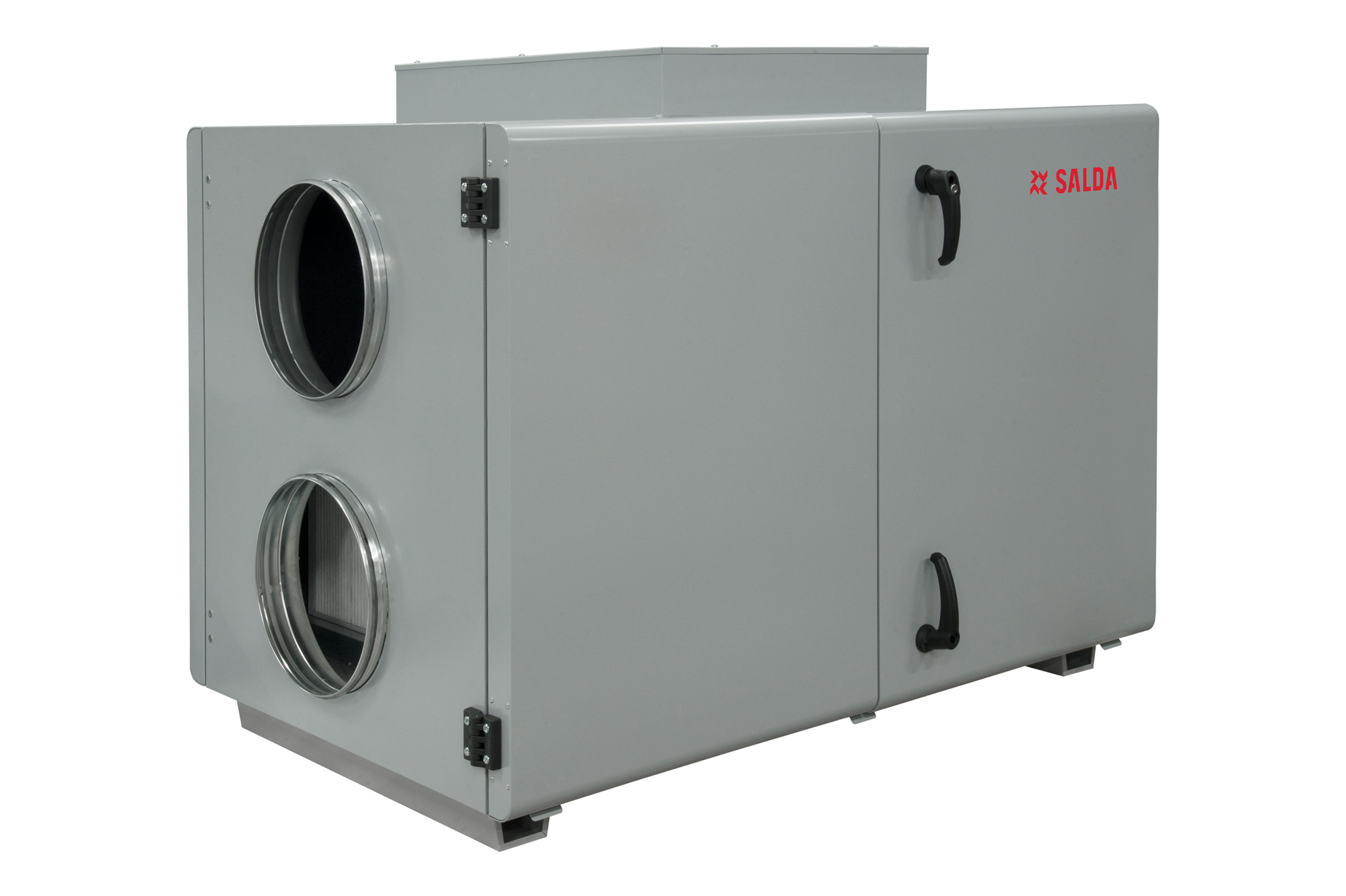

AmberAir Compact RIRS H EKO 3.0

AmberAir Compact RIRS H EKO 3.0 is a range of Eurovent certified heat recovery units with high-efficiency rotor heat exchangers. The units are designed for horizontal placement in auxiliary heated or non-heated premises (basements, boiler rooms, etc.).

Available in left or right connection sides and designed for up to 6000m3/h, separate heaters available for different climate zones.

AmberAir Compact RIRS H EKO 3.0 units have high overall energy savings due to the highly efficient heat recovery (up to 85%), quiet and economical EC fans, effective low pressure drop filters and top-level of air tightness.

All AmberAir Compact RIRS H EKO 3.0 units are fully equipped with automatic controls as well as humidity sensor. Optional external sensors for CO2 and pressure will help to automatically control your climate.

More
Vertical

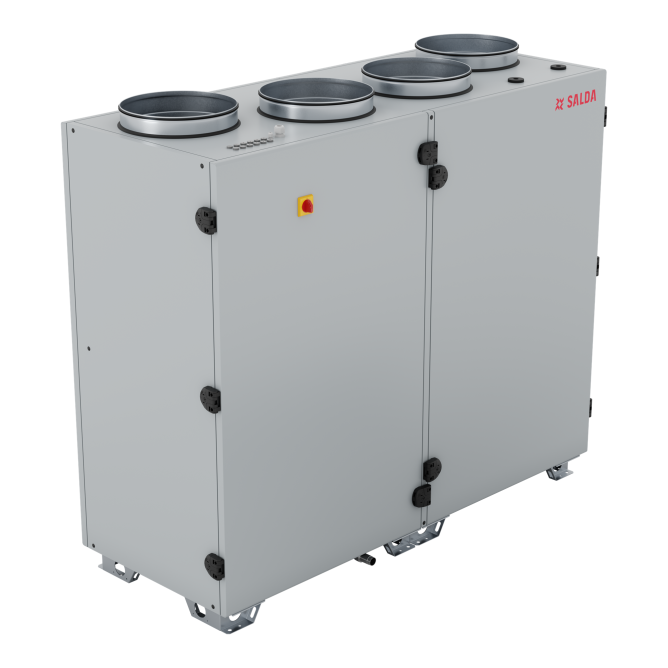

AmberAir Compact S-R V

AmberAir Compact S-R V is Eurovent certified range, designed for ventilation of public, commercial, or industrial premises. Available sizes up to 5000m3/h airflow.

Equipped with Rotary heat exchanger and optional water heater/cooler, electric heater or DX coil, these units reach great efficiency and airtight construction minimizes external and internal leakages. High internal airtightness L1(M) prevents odors from extracted air to get into the supply air.

Improved casing with high class thermal insulation T2/TB2. Ergonomic handles can be removed to transport though narrow doors.

Automatics integrated inside the casing for convenient servicing of outdoor units. No need to dissemble roof for maintenance.

More

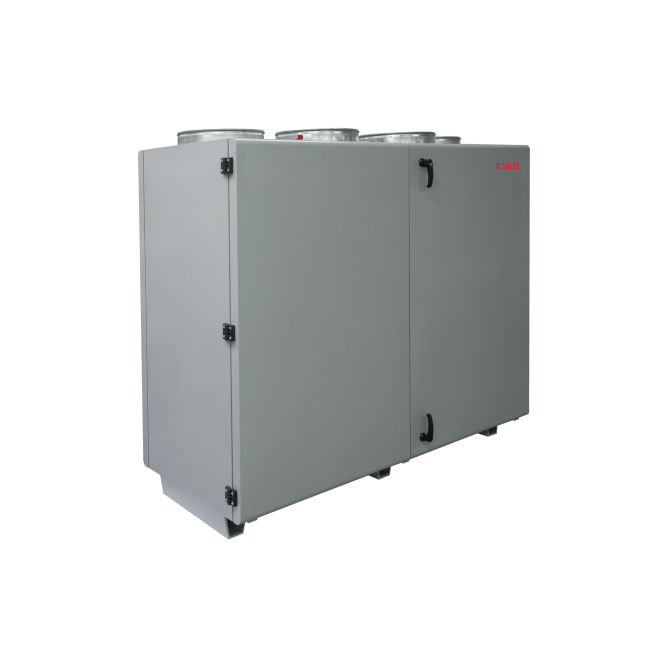

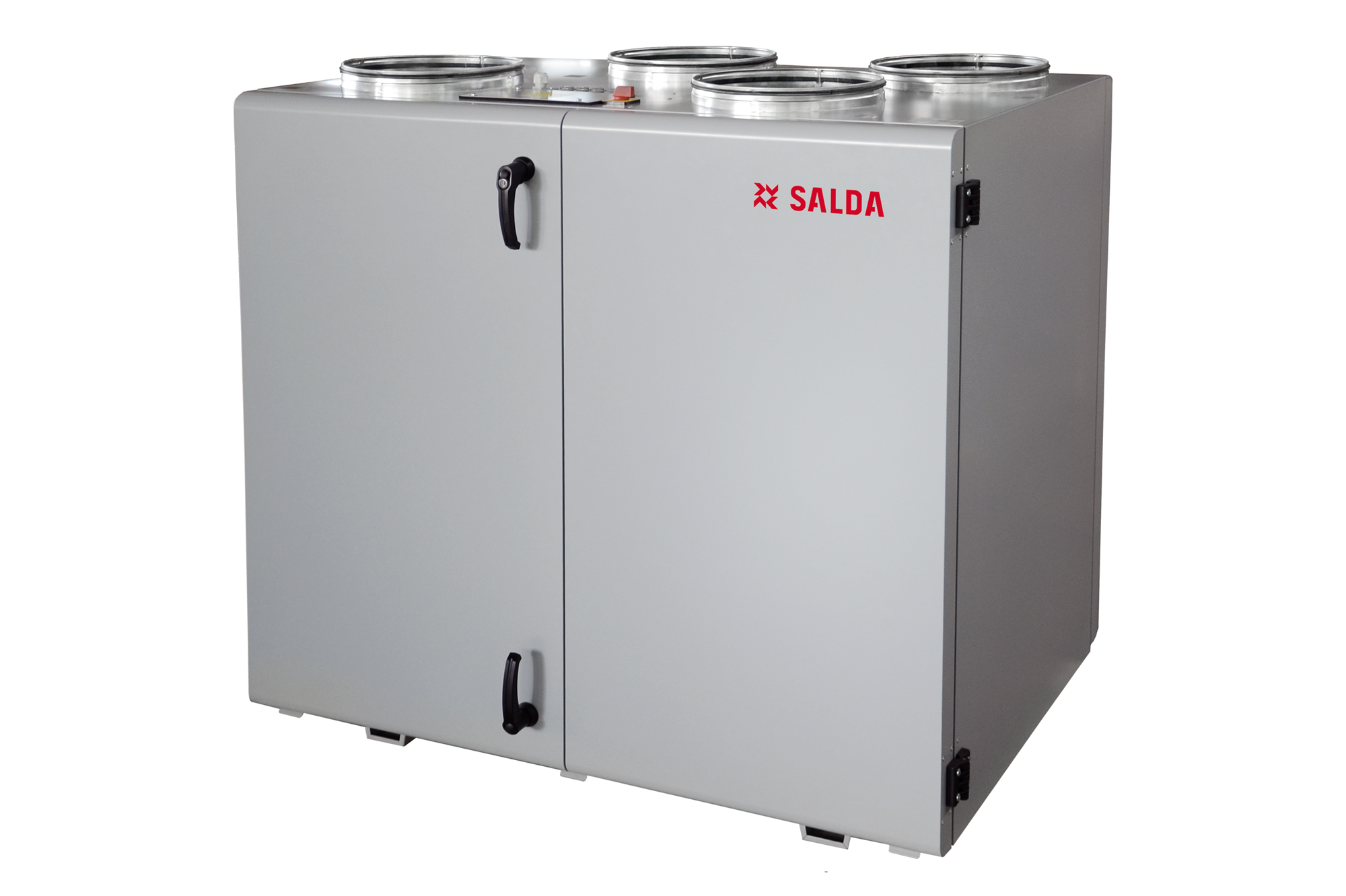

AmberAir Compact RIRS V EKO 3.0

AmberAir Compact RIRS V EKO 3.0 is a range of Eurovent certified heat recovery units with high-efficiency rotor heat exchangers. Units are designed for vertical placement in auxiliary heated or non-heated premises (basements, boiler rooms, etc.). Available in left or right connection sides and designed for up to 5500m3/h with separate heaters available for different climate zones.

AmberAir Compact RIRS V EKO 3.0 units have high overall energy savings due to the highly efficient heat recovery (up to 85%), quiet and economical EC fans, effective low pressure drop filters and top-level of air tightness.

All AmberAir Compact RIRS V EKO 3.0 units are fully equipped with automatic controls as well as humidity sensor. Optional external sensors for CO2 and pressure will help to automatically control your climate.

More
Air supply units

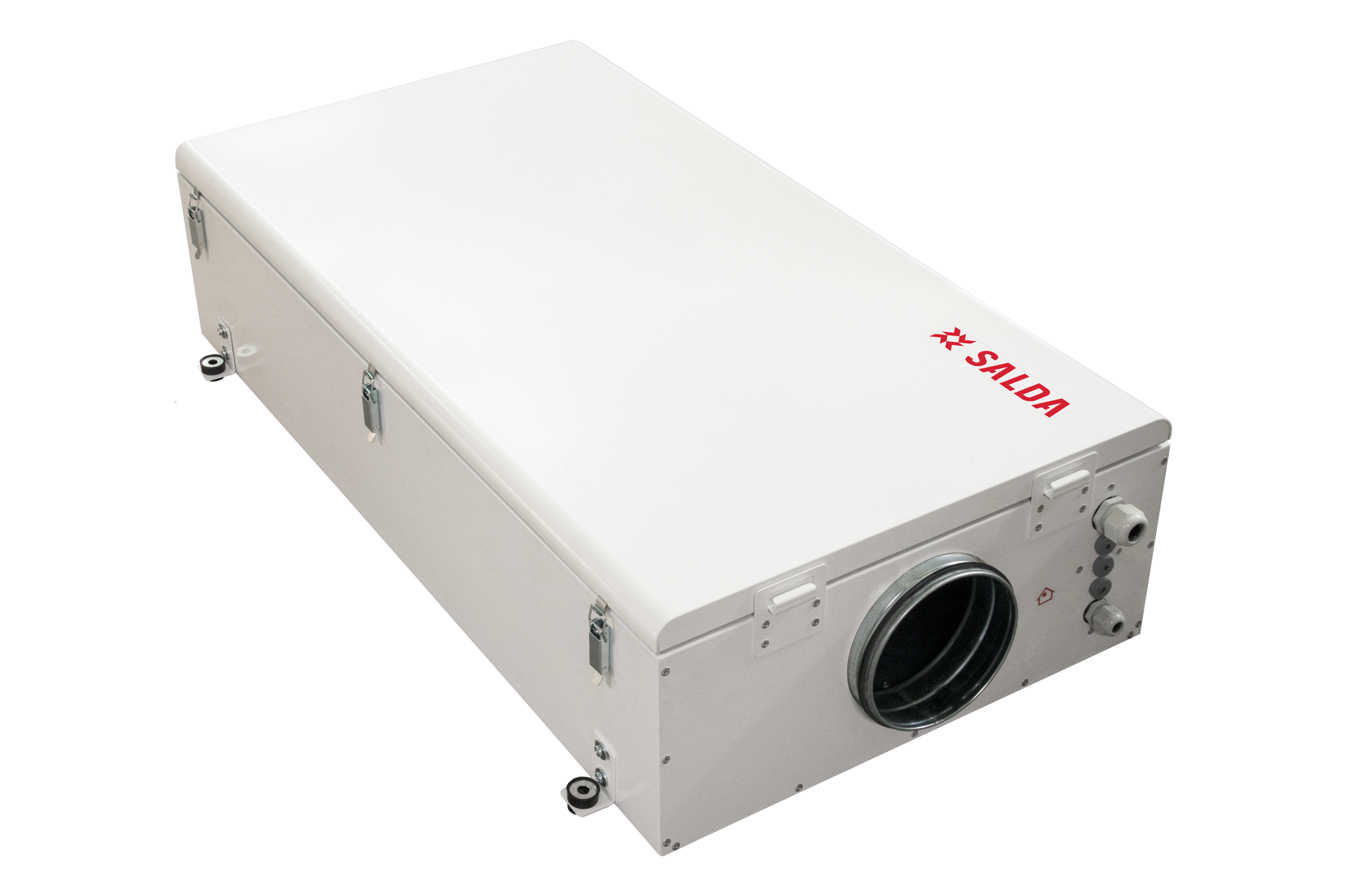

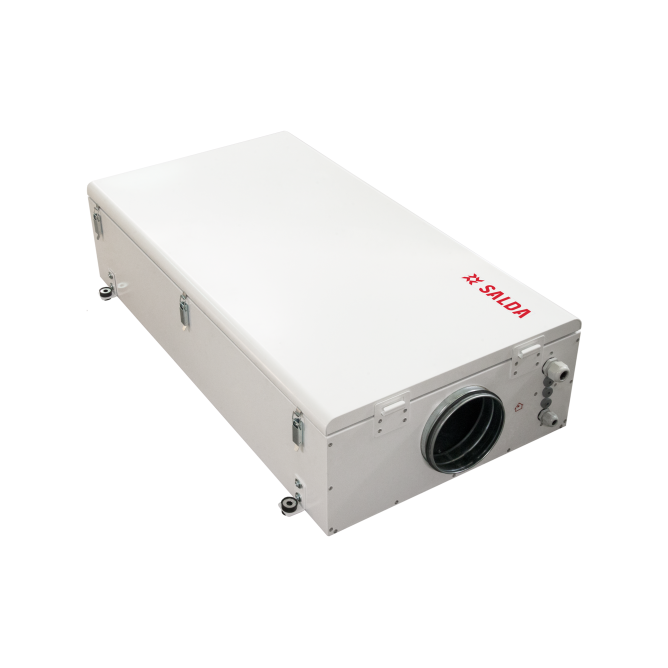

VEGA

VEGA range is designed as a high quality air supply unit for premises where heat recovery is not needed. Due to its extremely low profile and possibility to mount in any position, VEGA could be a perfect solution for small premises.

 The units are suitable for various climate zones, therefore this unit features a customizable heating system. The electric heater is optional, easy to install, and produced in three versions for each climate zone. VEGA air supply units comply with ErP2018 requirements.

More

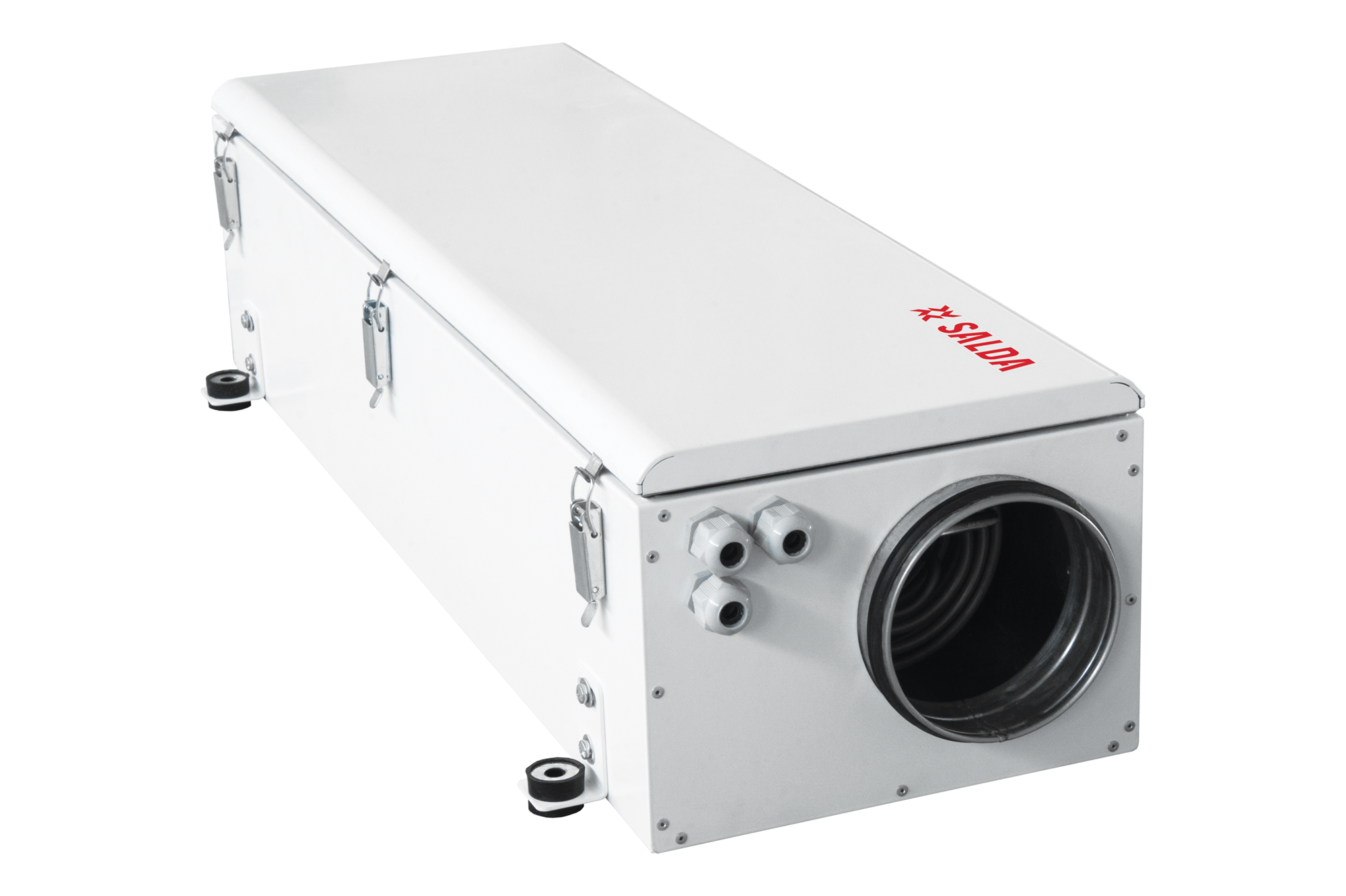

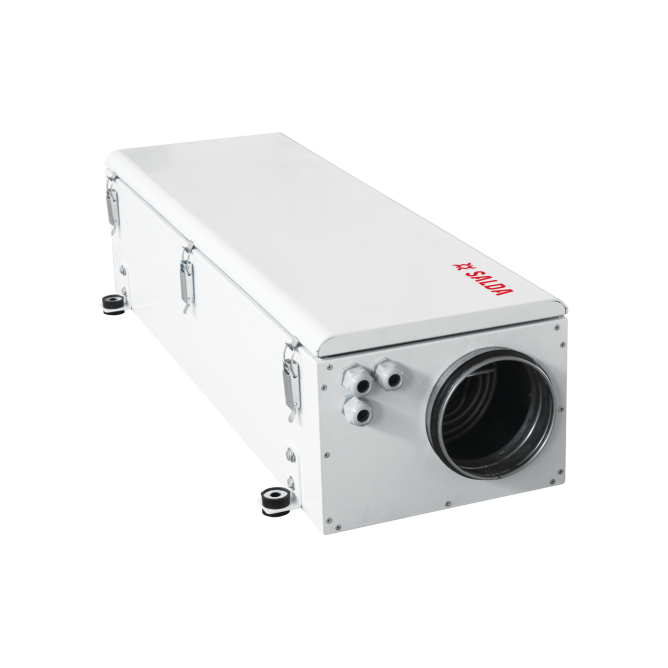

VEKA EC

VEKA EC designed for the air supply to small commercial, warehousing, etc. premises where heat recovery is not required. Low height and compact size enable to integrate easily in ventilation systems with almost no additional space required.

The unit comes with an integrated filter (Coarse 65%), EC type motor, and additionally supplied electrical heater (2 versions).

VEKA EC can be controlled by a 0-10V fan speed controller or potentiometer. To control el. heater external potentiometer is required.

More

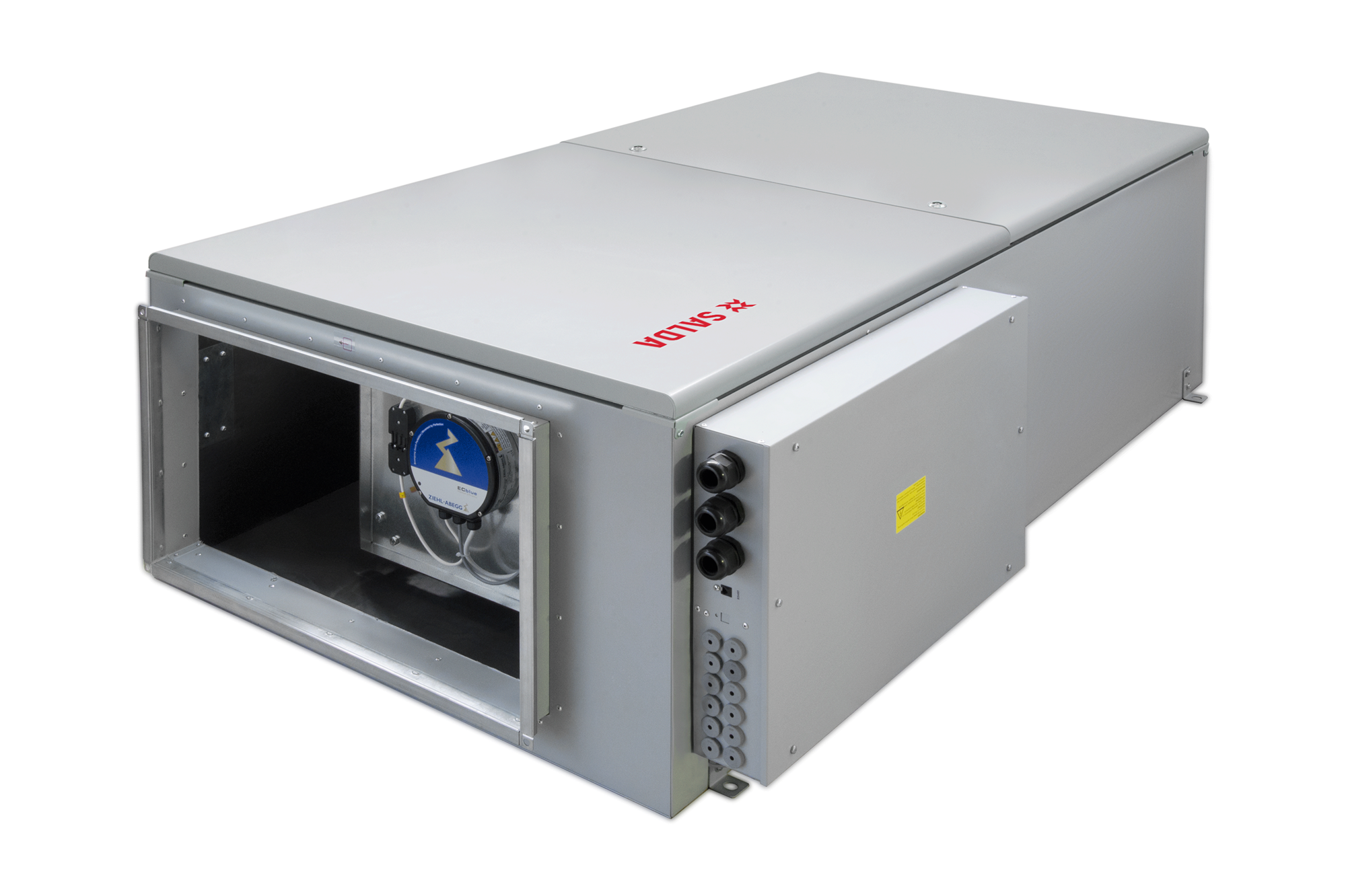

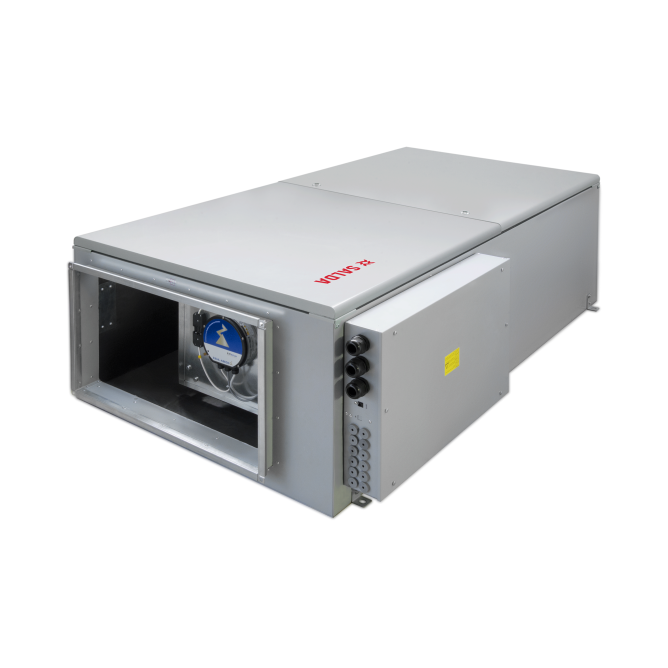

AmberAir Compact VEKA INT EKO

AmberAir Compact VEKA INT EKO is a range of high-quality, Eurovent certified air supply units for premises with no need for heat recovery. AmberAir Compact VEKA INT EKO units exceed ErP 2018 requirements and, together with other cost-saving solutions, provide the highest savings in their class.

AmberAir Compact VEKA INT EKO units are light and can be mounted in all positions in the narrowest places. Units are suitable for various climate zones: each model has several electrical heater options and water heater options.

Air dampers are integrated to automatically shut down the air supply to the premises

More
